Proud to offer over twenty five years of outstanding services and operations.

Since 1989, we have been creatively solving complex and detailed heat treating and brazing applications.


Our SERVICES

Accurate Brazing is a full service vacuum brazing and heat treating enterprise with almost 40 years in the business. Over that time, we’ve become adept at heat treating materials that include stainless steel, super alloys, copper, and refractory materials. Unlike competitors, Accurate Brazing has the unique expertise, capacity and equipment to take new programs and get them into production quickly.

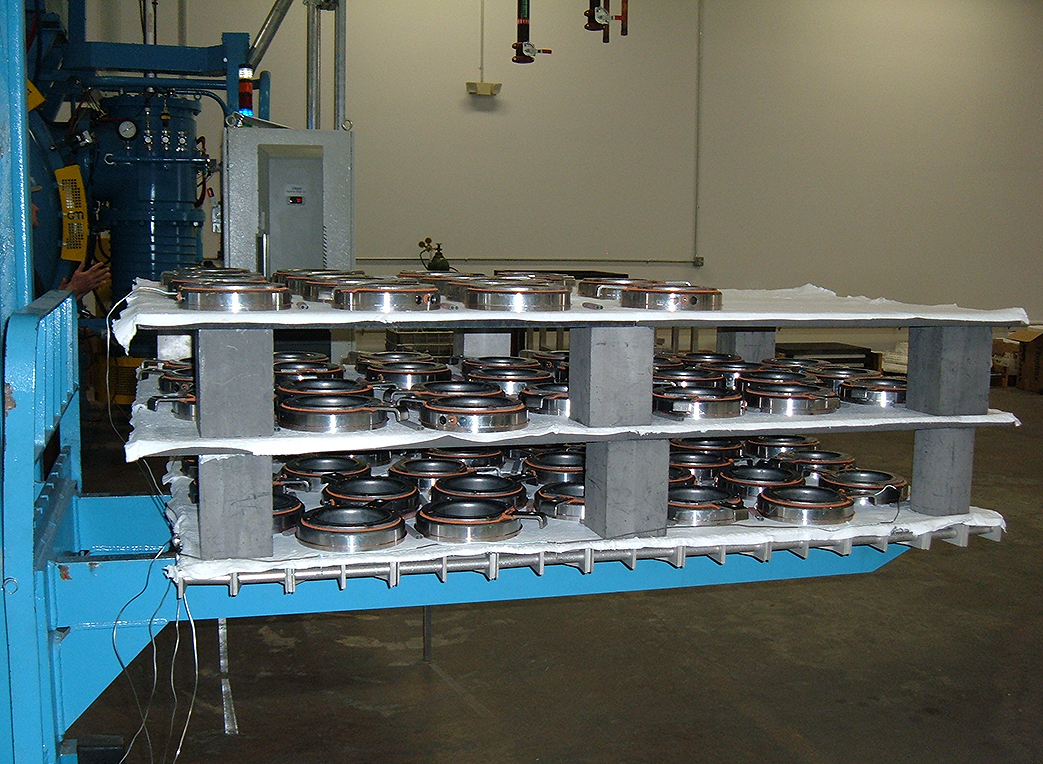

Specialties include end-cover, nozzle and cartridge assemblies for fuel delivery systems.  We also process heat exchangers, tube assemblies, medical implants, consumable welding products, and semiconductor equipment. We braze and/or heat treat various materials including: Stainless steel (300 and 400 series), “Super Alloys” (Inconel, A286, Rene 41, Waspalloy, Hastalloy, etc.), copper, refractory materials (Moly, Titanium, Tungsten and carbon steels).

We have also had great success heating treating A, D and M series tool steels. Vacuum heat treating allows for uniform heating and cooling which minimizes distortion and provides excellent metallurgical properties.


OUR EQUIPMENT: Greenville,  South Carolina

Brazing and Heat Treating:

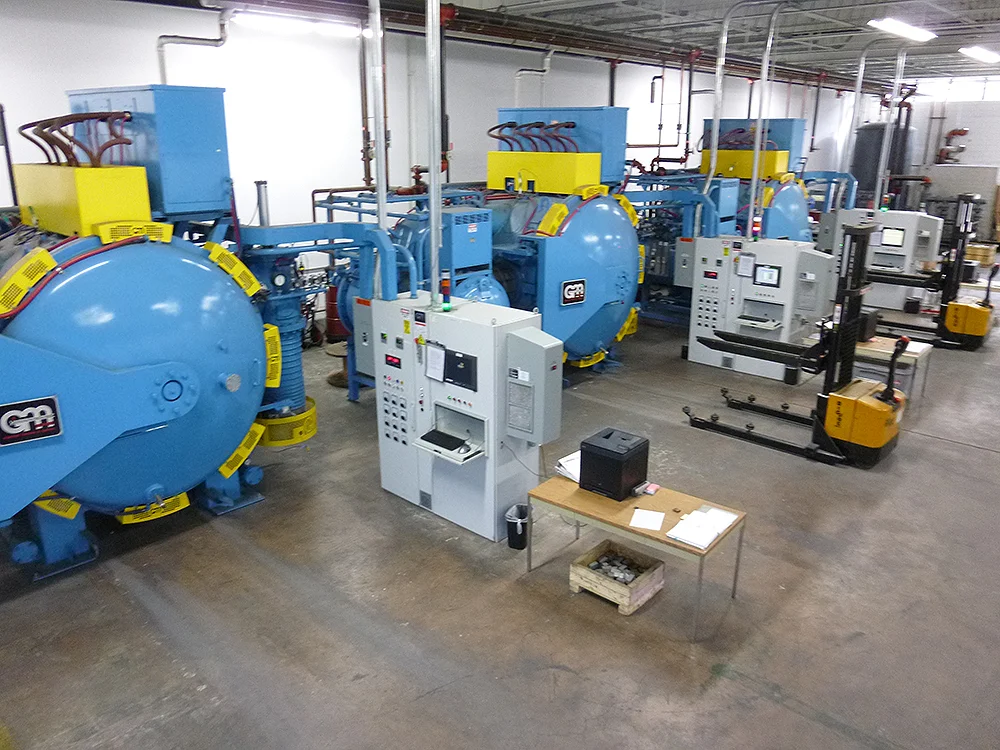

  • 17 "State of the Art" Abar/Ipsen Metalmaster & Turbo Treater Vacuum Furnaces
  • 3 GM Horizontal Vacuum Furnaces
  • Up to 80"L x 55"W x 40"H & 7,000 lbs. in vacuum
  • Fully Automatic Process Control
  • Argon, Nitrogen and Helium Quenching Capability
  • Multiple Air Furnaces
  • Blue M Oven
  • 2.5 KW Lepel Induction Generators
  • Oxygen/Acetylene Torch Brazing
  • Deep Freeze Cabinet for Cryogenic Processing



Assembly and Prep:

  • Multiple Unitek Capacitance Discharge Spot Welders
  • 2 Pneumatic Welders
  • Miller 250 Amp AC/DC TIG Welder
  • L-Tec 300 Amp AC/DC TIG Welder
  • Multiple Glass Bead Blasting Cabinets
  • Pneumatic Filler Material Applicators
  • 6" Diamond Cut-off Saws

Testing and Inspection:

  • Metallugical Lab
  • Varian Helium Leak Detectors
  • Twin Rockwell Hardness Tester
  • Instron/Wilson Digital Hardness Tester
  • Clark Digital Hardness Tester
  • 30 X Inspection Microscope
  • 40 X Bausch and Lomb Stereo Microscope
  • 10 X Hawkeye Precision Borescopes



Material Handling:

  • Multiple Cargo Vans
  • Four Box Trucks
  • Four Forklifts

our equipment: Manchester, Connecticut

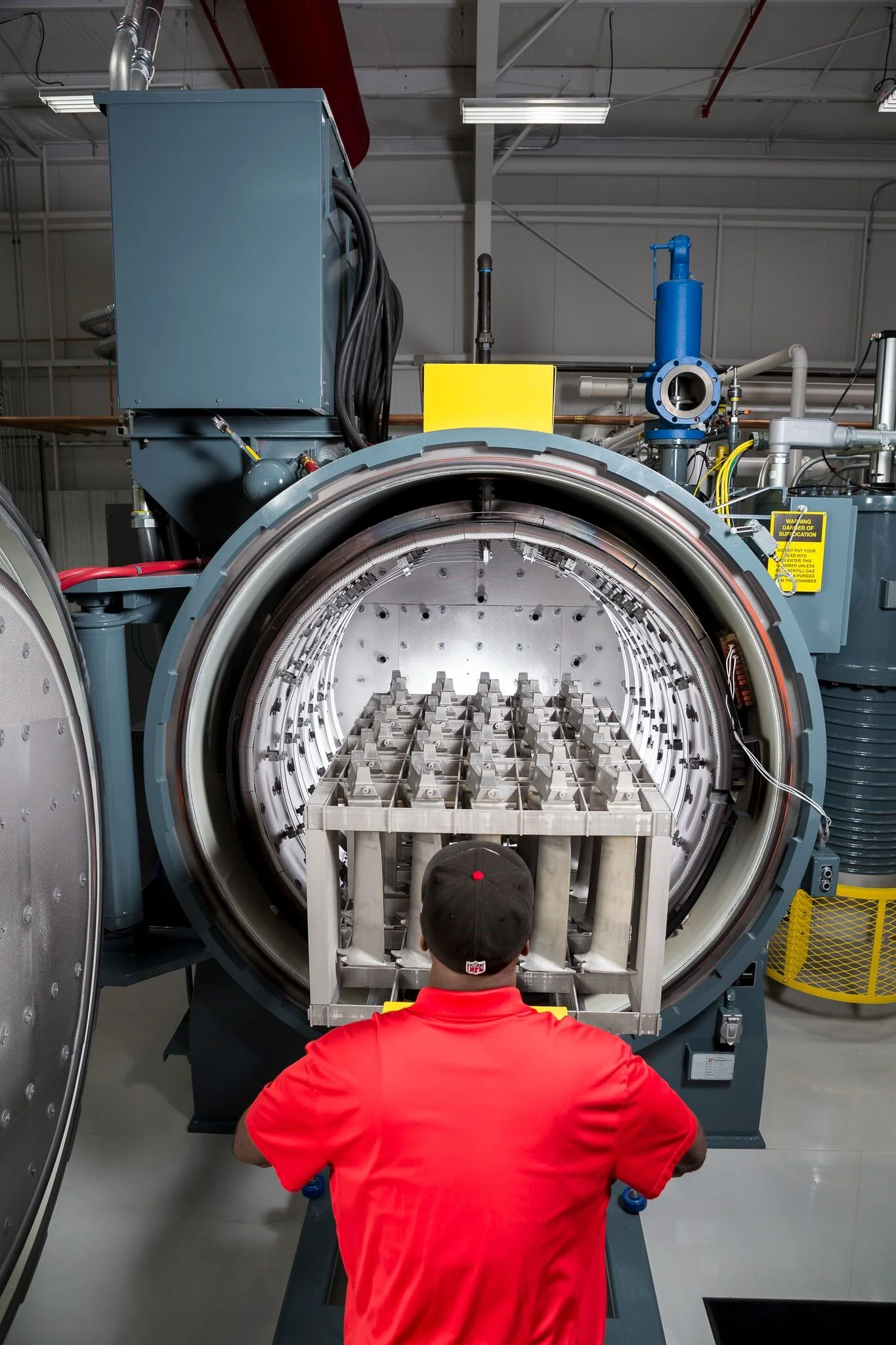

Furnace 71:

  • HVF 401-B Vacuum, Backfill 2 bar Argon or Nitrogen atmosphere,
  • Manufacturer – GM Enterprises, Manufacture date November 2010
  • Maximum temperature 2400F, TUS 900-2250 +/-10F, load thermocouples type “N”
  • Work zone size 42”W X 32” H X 52” D, max weight 2500lbs
  • Processes – Brazing (gold, Ni, Silver, Ti/AL, copper), Solution of Inconel and ph materials, Austenitize of 400 SS, Stress relieve of various, solution of several titanium alloys, Age of Inconel and ph alloys, Solution of 200-300 series SS.



FURNACE 72:

  • HVF 401-B Vacuum, Backfill 2 bar Argon or Nitrogen atmosphere,
  • Manufacture – GM Enterprises, Manufacture date November 2010
  • Maximum temperature 2400F, TUS 900-2250 +/-10F, load thermocouples type “N”
  • Work zone size 42”W X 36” H X 52” D, max weight 2500lbs
  • Processes – Brazing (gold, Ni, Silver, Ti/AL, copper), Solution of inconel and ph materials, Austenitize of 400 SS, Stress relieve of various, solution of several titanium alloys, Age of Inconel and ph alloys, Solution of 200-300 series SS.



furnace 73:

  • HVF 401-B Vacuum, Backfill 2 bar Argon or Nitrogen atmosphere,
  • Manufacturer – GM Enterprises, Manufacture date July 2014
  • Maximum temperature 2400F, TUS 900-2250 +/-10F, load thermocouples type “N”
  • Work zone size 42”W X 36” H X 52” D, max weight 2500lbs
  • Processes – Brazing (gold, Ni, Silver, Ti/AL, copper), Solution of inconel and ph materials, Austenitize of 400 SS, Stress relieve of various, solution of several titanium alloys, Age of Inconel and ph alloys, Solution of 200-300 series SS.



furnace A1:

  • Air atmosphere,
  • Manufacturer - JPW Design & Manufacturing, Manufacture date January 2011
  • Maximum temperature 650F, TUS +/-10F, Thermocouples type “N”
  • Work zone size 4’W X 4’ D X 5’ H
  • Processes – Aluminum aging & annealing, steel tempering, low-temperature stress relieve various metals



furnace A2:

  • Air atmosphere,
  • Manufacture - JPW Design & Manufacturing, Manufacture date January 2011
  • Maximum temperature 1200F, TUS +/-10F, Thermocouples type “N”
  • Work zone size 4’W X 4’ D X 4’ H
  • Option of water or glycol quench – quench basket size 41” X 41” X 41”
  • Processes – Aluminum Solutioning, annealing, aging, steel tempering, low-temperature stress relieve various metals, aging of ph materials



furnace A3:

  • Air atmosphere,
  • Manufacturer – Nobel Furnace and Fire Brick Co, Manufacture date December 2015
  • Maximum temperature 2000F+/-15F, TUS +/-10F up to 1200F, Thermocouples type “N”
  • Work zone size 54”W X 54” D X 40’ H
  • Processes – Annealing, aging, steel tempering, stress relieve various metals, aging of Ph materials.


Connecticut Division Approvals

Prime: APPROVALS

Pratt & Whitney: PWA 11, PWA36950, PWA19, AMS2664, PWA36951, AMS2670, AMS2671

Rolls Royce Indy: AMS2670, AMS2675, AMS2759/3, AMS2759/4, AMS2759/5, AMS2770, AMS2771, AMS2772, AMS2773, AMS2774, EIS1201, EIS1270, EPS401, EPS416, EPS433, EPS14530, EPS15801, RRES90000

General Electric: AMS2769, S453, AMS2770, AMS2771, AMS2774, AMS2759, AMS-H-6875, P9TF1, P10TF1, M50T1, S405, AMS2801

FAA: Repair Station 4BZR889B

AeroJet: Heat treating and brazing

FFL: License #6-06-003-07-7J-02156

Nadcap: Heat Treating & Brazing Expires July 31, 2018

Nadcap: Aerospace Quality System (AC7004-AS9100) Exp July 31, 2019
